  • PART LIST
  • PROTECTOR
    • DIMENSIONS
      Length 308
      Width 127
      Height 58
    • MATERIAL
      Protector PA66
      Weight 132g
      Nut S 300PB
      Weight 3.5g
    NO VALIDATION TEST METHOD REMARK
    1 Temperature -30℃ ~ 85℃
    2 Flamabilty 100㎜/min
    3 Mounting Force (Panel) ≤ 3daN
    4 Removal Force (Panel) ≥ 12daN
    5 Pulling Out Force (Panel) ≥ 12daN
    6 Resistance To Impacts 400g, 50㎝, 23℃
    7 Vibration Resistance 25 ~ 500㎐
    8 Resistance To Occasional Fluids 80±℃
    9 Torque Behaviour >9.2N.m
    10 Exceptional Torque Behaviour >12N.m
    11 Hood Hinge 90°

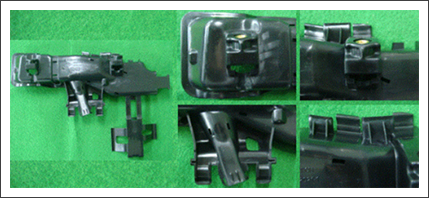

  • PICTURE
