  • DASH GROMMET
    • DIMENSIONS
      Length 106
      Width 106
      Height 89.5
    • MATERIAL
      EPDM
      Weight 125g
    NO VALIDATION TEST METHOD REMARK
    1 Elongation 250%
    2 Hardness Shore .A 50±4
    3 Tensile Strength 10≤Rr>14M Pa
    4 Tear Strength 20kN/m
    5 Compression Set 30% (22Hour, 70±2℃)
    6 Temperature -40℃ ~ 85℃
    7 Ozone Resistance 2㎠/㎡, 48Hour
    8 Low Temp, Brittleness -40℃
    9 Discolaration 85℃
    10 Flamabilty 100㎜/min
    11 Insertion Force ≤ 6daN
    12 Removal Force ≥ 12daN
    13 Pulling Out Force ≥ 12daN
    14 Water Seal Performance 0%
    15 Resistance To Fluids 24Hour
    16 Acoustic Test 500㎐ ~ 10,000㎐

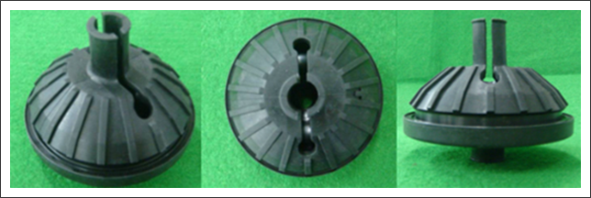

  • PICTURE
